Tilt Trailers / TF

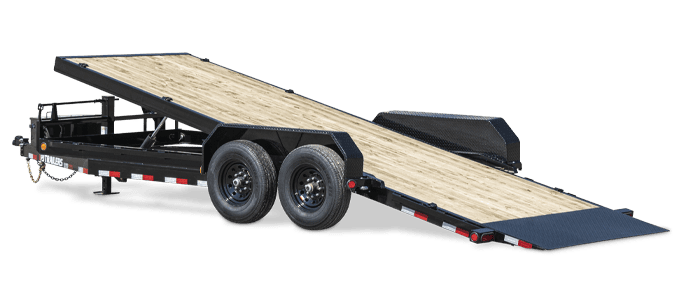

Powered Full Tilt (TF)

This full tilt trailer uses its entire deck to carry your cargo. It has an extra-wide 83” deck between the fenders, with lengths from 18’ to 24’ for you to pick. That gives you plenty of space to haul what you need. Loading and unloading is easy thanks to the 11-degree tilt angle, dual ram hydraulic lift, and diamond plate knife edge. Plus, with optional Blackwood Pro decking for extra strength and grip, it’s ready for wherever life takes you.

View Inventory

Trailer Specifications

18 – 24'

Width

83"

Lengths

14,000 lbs

GVWR

5,980—19,420 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BT] (2) 7,000# Electric / Torsion Available Options [92BT] (2) 7,000# w/14 Ply LR-G Tires Electric / Torsion
Suspension	Torsion Suspension
Tongue	6" Channel Tongue
Coupler	[J] BP 2-5/16" Adjustable (14,000 lb.) Available Options [J] BP 2-5/16" Adjustable (14,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox [S] GN 2-5/16" Square (25,000 lb.) w/ Toolbox [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Drop Leg Jack (10,000lb) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA15] Upgrade to Dual 10k Jacks [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA18] Dual 2-Speed Jacks (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP
Frame	6" Channel Frame Available Options [-FR8C] 8" Channel Upgrade [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Bump Rail	Front Bump Rail
Floor	2" Treated Pine Lumber Deck Available Options [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	9" x 72" Treadplate Removable Steel Fenders Available Options [-FE01] 1/4" DP HD Weld on Fenders Tandem Axle [-FE02] 1/4" DP HD Weld on Fenders Triple Axle [-FE04] Weld on Fenders
Stake Pockets	Stake Pockets along both sides (Quantity depends on length) Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tilt Deck Dimensions	74" Wide Tiltable Deck
Rubrail	2" Rubrail
Tie-Downs	(6) Flushmount D-rings Available Options [-RT01] 1 Pair Weld-On Ratchets [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up / Down Available Options [-PUGD] Power Up/Down & Gravity Down Upgrade
Storage	Available Options [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools
Tilt Deck Angle	11°
Tail	[T] Tilt Deck
Lift Cylinder	3"x 16" w/o 8"ch. & 3" x 25" w/8"ch or 24' lengths
Other Options	Available Options [-FR01] Fork Rack [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-TRA1] 1/2 x 1/2 Square Traction Bars

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.

CARGO CONTROL STANDARD

Benefit from standard stake pockets for essential cargo securement, and then add optional D-rings to further keep cargo secured and ready for safe transportation.

KNIFE EDGE TAIL

Our 30" Diamond plate knife edge tail makes it super-easy to load low clearance equipment like scissor lifts and forklifts.

HYDRAULIC POWERED TILT DECK

Delivering stability and control over the precise up and down movement of the trailer deck, its front ram hydraulic powered system makes hauling easier by giving you more flexibility during loading and unloading.
