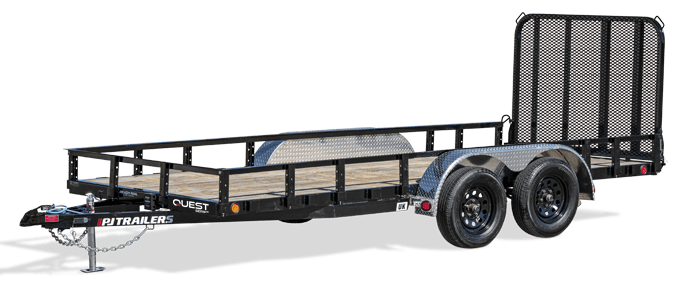

77" Tandem Axle Channel Utility (UK)

For fun or for work, the UK is all about cost-effective versatility. It’s a dependable and reliable utility trailer that allows you to tackle whatever obstacles are ahead of you. It’s ready to be the trailer you need it to be to take on tomorrow’s challenges.

View Inventory

Trailer Specifications

10 – 18'

Width

77"

Lengths

7,000 lbs

GVWR

5,550—8,049 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[32CS] (2) 3,500# One Electric / Spring Available Options [12CS] (2) 3,500# One Electric / Spring With Upgrade to 225/75 R15 on 3.5k Axles [12DS] (2) 3,500# Idler / Spring With Upgrade to 225/75 R15 on 3.5k Axles [12BS] (2) 3,500# Electric / Spring With Upgrade to 225/75 R15 on 3.5k Axles [32DS] (2) 3,500# Idler / Spring [32BS] (2) 3,500# Electric / Spring [52CS] (2) 5,200# One Electric / Spring [52BS] (2) 5,200# Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension
Tongue	4" Channel Wrapped Tongue
Coupler	[2] BP 2" A-Frame Available Options [2] BP 2" A-Frame [A] BP 2-5/16" A-Frame [J] BP 2-5/16" Adjustable
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)
Jack	Pipe Mount Swivel Jack (5,000 lb.) Available Options [-JA10] 10k Jack w/ Non-Removable Front Rail [-JA12] Upgrade to 7k Jack [-JA13] Rear Trailer Support Jacks
Frame	4" Channel Frame Available Options [-CM12] 12" OC Crossmembers [-CM16] 16" OC Crossmembers
Cross-Members	2-1/2" Angle Crossmembers on 24" Centers
Floor	2" Treated Pine Lumber Deck Available Options [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	9" x 72" Treadplate Removable Aluminum Fenders Available Options [-FE05] Steel Diamond Plate Fenders
Ramps	Available Options [-ATVR] Side Mount ATV Ramps
Stake Pockets	Stake Pockets along both sides (Quantity depends on length) Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available Options [-7WPU] 7 Way Plug Upgrade
Wiring	All-Weather Wiring Harness (7-way RV)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tie-Downs	Available Options [-TD01] 1 Set of Cargo Tie Down (2) Loops [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Sides	Available Options [-SG01] 4ft Side Gate (14ft or longer) [-SR01] 22" Solid Metal Sides w/ 2x2 sq tube [-SR02] 2ft Expanded Metal Sides [-SR03] Regular Sides w/Expanded Metal [-SR04] 4ft Expanded Metal Sides [-SR05] Regular Sides w/Solid Metal
Storage	Available Options [-TB01] Front Toolbox (Includes 7k jack upgrade) [-TB07] Landscape Toolbox
Top Rail	2" x 2" Top Rail
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only)
Uprights	2" x 2" Removable Side Rail equipped with Ready Rail®
Tail	[S] Straight Deck Available Options [B] Dovetail w/ 4' Fold-up Gate [F] Straight Deck with Fold In Gate [G] Straight Deck w/ 4' Fold-up Gate [H] Straight Deck w/ 4' Heavy Duty Fold-up Gate [J] Dovetail w/ 4' Heavy Duty Fold-up Gate [K] Straight Deck w/ Bi-Fold Gate [M] Dovetail w/ Bi-Fold Gate [Q] Straight Deck w/ Split Heavy Duty Gate [R] Straight Deck w/ 5' Slide-in Ramps [X] Dovetail w/ Split Heavy Duty Gate
Other Options	Available Options [-GV09] 9,900 G.V.W.R. [-RATL] Ramp Gate Transition Lip [-SAL1] Ship Axles Loose
