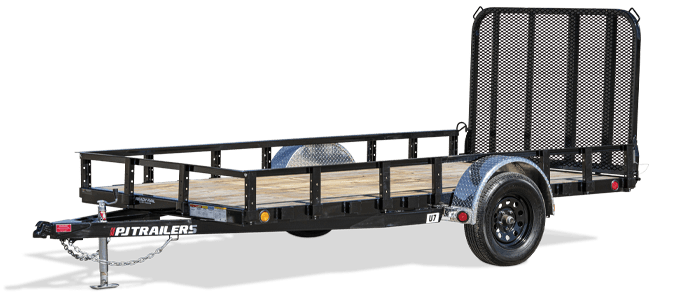

77" Single Axle Channel Utility (U7)

Look no further than the 77" Single Axle Channel Utility Trailer (U7) and get ready to take on any job with confidence. With its 77" wide deck, you get the space you need to haul all kinds of cargo, including ATVs, UTVs, lawn equipment, and other light loads. If you like to forge your own path, this trailer was built for you.

View Inventory

Trailer Specifications

10 – 14'

Width

77"

Lengths

2,990 lbs

GVWR

1,890—3,575 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[31DS] (1) 3,500# Idler / Spring Available Options [11DS] (1) 3,500# Idler / Spring With Upgrade to 225/75 R15 on 3.5k Axles [11BS] (1) 3,500# Electric / Spring With Upgrade to 225/75 R15 on 3.5k Axles [31BS] (1) 3,500# Electric / Spring [51DS] (1) 5,200# Idler / Spring [51BS] (1) 5,200# Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension
Tongue	4" Channel Wrapped Tongue
Coupler	[2] BP 2" A-Frame Available Options [2] BP 2" A-Frame [A] BP 2-5/16" A-Frame
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)
Jack	Pipe Mount Swivel Jack (5,000 lb.) Available Options [-JA10] 10k Jack w/ Non-Removable Front Rail [-JA12] Upgrade to 7k Jack [-JA13] Rear Trailer Support Jacks
Frame	4" Channel Frame Available Options [-CM12] 12" OC Crossmembers [-CM16] 16" OC Crossmembers
Cross-Members	2-1/2" Angle Crossmembers on 24" Centers
Floor	2" Treated Pine Lumber Deck Available Options [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	9" x 33" Treadplate Removable Aluminum Fenders Available Options [-FE05] Steel Diamond Plate Fenders
Ramps	Available Options [-ATVR] Side Mount ATV Ramps
Stake Pockets	Stake Pockets along both sides (Quantity depends on length) Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available Options [-7WPU] 7 Way Plug Upgrade
Wiring	Sealed Wire Harness
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tie-Downs	Available Options [-TD01] 1 Set of Cargo Tie Down (2) Loops [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Sides	Available Options [-SG01] 4ft Side Gate (14ft or longer) [-SR01] 22" Solid Metal Sides w/ 2x2 sq tube [-SR02] 2ft Expanded Metal Sides [-SR03] Regular Sides w/Expanded Metal [-SR04] 4ft Expanded Metal Sides [-SR05] Regular Sides w/Solid Metal
Storage	Available Options [-TB01] Front Toolbox (Includes 7k jack upgrade) [-TB07] Landscape Toolbox
Top Rail	2" x 2" Top Rail
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only)
Uprights	2" x 2" Removable Side Rail equipped with Ready Rail®
Tail	[S] Straight Deck Available Options [B] Dovetail w/ 4' Fold-up Gate [F] Straight Deck with Fold In Gate [G] Straight Deck w/ 4' Fold-up Gate [K] Straight Deck w/ Bi-Fold Gate [M] Dovetail w/ Bi-Fold Gate [R] Straight Deck w/ 5' Slide-in Ramps
Other Options	Available Options [-GV09] 9,900 G.V.W.R. [-RATL] Ramp Gate Transition Lip [-SAL1] Ship Axles Loose
