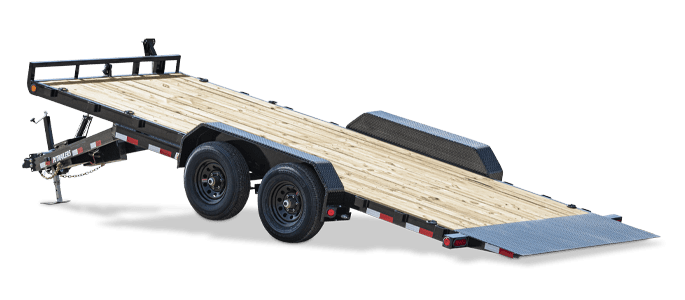

83" Hydraulic Quick Tilt (TH)

Because the TH features a full tilt (powered by a hydraulic lift system), the entire deck becomes your loading and unloading ramp—saving you space to use the entire trailer deck for more cargo. Safely and securely moving your haul from one location to another, the TH is a versatile and convenient trailer that’s ready for whatever is over the next horizon.

View Inventory

Trailer Specifications

18 – 22'

Width

83"

Lengths

10,000 lbs

GVWR

7,300—7,500 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[52BS] (2) 5,200# Electric / Spring Available Options [52CS] (2) 5,200# One Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension
Tongue	5" Channel Tongue
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch Available Options [J] BP 2-5/16" Adjustable [P] 3" Pintle Eye - Channel-Mount
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)
Jack	Top Wind Drop Leg Jack (8,000 lb.)
Frame	5" Channel Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Bump Rail	Front Bump Rail
Floor	2" Treated Pine Lumber Deck Available Options [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	9" x 72" Treadplate Removable Steel Fenders
Stake Pockets	Stake Pockets along both sides (Quantity depends on length) Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST225/75R15 Radial Tires 6 ply (1,820 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tilt Deck Dimensions	83" Wide Tiltable Deck
Tie-Downs	(6) Flushmount D-rings Available Options [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings [-SRRR] 2" Rubrail
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up / Down
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN95] Winch 10k w/ Plate & Battery
Tilt Deck Angle	10°
Tail	[T] Tilt Deck
Other Options	Available Options [-GV09] 9,900 G.V.W.R.

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.

CARGO CONTROL STANDARD

Benefit from standard stake pockets for essential cargo securement, and then add optional D-rings to further keep cargo secured and ready for safe transportation.

KNIFE EDGE TAIL

Our 30" Diamond plate knife edge tail makes it super-easy to load low clearance equipment like scissor lifts and forklifts.

HYDRAULIC POWERED TILT DECK

Delivering stability and control over the precise up and down movement of the trailer deck, its front ram hydraulic powered system makes hauling easier by giving you more flexibility during loading and unloading.
