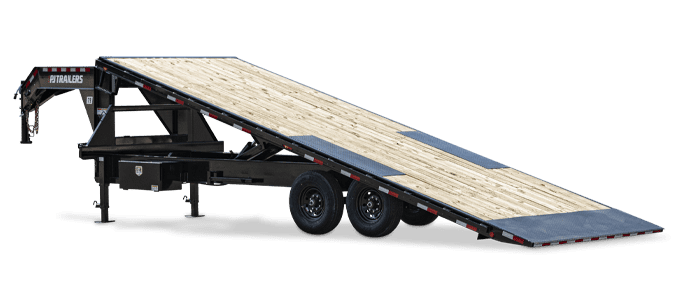

HD Deckover Tilt (T9)

It’s purpose-built to haul big and large with its 12" x 14 lbs channel frame and tongue that’s combined with an extra wide 102’’ deck that’s 22' to 30’ long (depending on configuration)—and it’s all powered by a strong hydraulic scissor lift that allows for easy access. And it’s easy to use thanks to its Monster Step for improved user stability, and is equipped with standard rub rail and stake pockets (available with optional d-rings) around the deck to better secure your haul. It’s strong. It’s versatile. It'll help you overcome whatever difficulties and challenges come at you on the long road ahead.

View Inventory

Trailer Specifications

24 – 30'

Width

102"

Lengths

15,680 lbs

GVWR

9,540—17,320 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [72BT] (2) 7,000# Electric / Torsion [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [82BT] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Torsion [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring [92BT] (2) 7,000# w/14 Ply LR-G Tires Electric / Torsion [B2BS] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires Electric / Spring [B2BT] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires Electric / Torsion [K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	12" x 14 lb. I-beam Tongue
Coupler	[R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox Available Options [B] BP 2-5/16" Adjustable Rigid Mount (25,000 lb.) [P] 3" Pintle Eye - Face-Mount (36,000 lb.) [Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox [R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox [S] GN 2-5/16" Square (25,000 lb.) w/ Toolbox
Safety Chains	3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Drop Leg Jack (10,000lb) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA18] Dual 2-Speed Jacks (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP
Frame	12" x 14 lb. I-Beam Main Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Floor	2" Treated Pine Lumber Deck Available Options [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	Diamond Plate Low-Pro Fenders
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tilt Deck Dimensions	102" Wide Tiltable Deck
Rubrail	2" Rubrail
Tie-Downs	Available Options [-RT01] 1 Pair Weld-On Ratchets [-RTST] 4" Ratchets every 4ft w/ Slide Track [-2RST] 4" Ratchets every 4ft w/ Slide Track (BOTH SIDES) [-UFTD] Under Frame Tie Down Flat [-UFT2] Under Frame Tie Down Flat on Both Sides [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up / Down Available Options [-PUGD] Power Up/Down & Gravity Down Upgrade
Lift Type	Scissor Lift
Steps	Monster Steps on Both Sides
Storage	Available Options [-GNCH] GN Lockable Chain Holder [-SB01] 1 Side-mount Toolbox 30"x14" [-SB02] 1 Side-mount Toolbox 45"x14" [-SB03] 1 Side-mount Toolbox 72"x14" [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools
Tilt Deck Angle	17°
Tail	[T] 24' Tilt
Lift Cylinder	5" x 10-1/2" Cylinder w/Scissor Lift
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-MF01] Mud Flaps Single Wheel Deckover [-TRA1] 1/2 x 1/2 Square Traction Bars

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.

CARGO CONTROL STANDARD

Benefit from standard stake pockets for essential cargo securement, and then add optional D-rings to further keep cargo secured and ready for safe transportation.

KNIFE EDGE TAIL

Our 30" Diamond plate knife edge tail makes it super-easy to load low clearance equipment like scissor lifts and forklifts.

HYDRAULIC SCISSOR POWERED TILT DECK SYSTEM

Protect your trailer from damage with our removable fenders. Safely and easily load equipment or perform maintenance on your trailer without fear of scratching or gouging fenders during the process.
