Tilt Trailers / T6

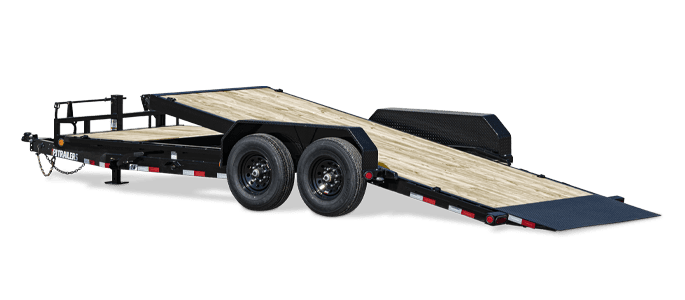

6" Channel Equipment Tilt (T6)

Ready to haul low-profile equipment and more with its spacious deck, 11-degree tilt angle, multiple ways to secure cargo, and diamond plate knife edge, the T6 is packed with the features and options that someone has driven as you need when forging new paths. Built strong for the longest adventures, it’s a trailer that’s perfect for those who are passionate about what they do.

View Inventory

Trailer Specifications

16 – 24'

Width

83"

Lengths

14,000 lbs

GVWR

10,940—11,730 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BT] (2) 7,000# Electric / Torsion Available Options [92BT] (2) 7,000# w/14 Ply LR-G Tires Electric / Torsion
Suspension	Torsion Suspension
Tongue	6" Channel Tongue
Coupler	[J] BP 2-5/16" Adjustable (14,000 lb.) Available Options [J] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Drop Leg Jack (10,000lb) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA15] Upgrade to Dual 10k Jacks [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA18] Dual 2-Speed Jacks (BP Only) [-JA19] 2 Hydraulic Jacks for BP
Frame	6" Channel Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3” Channel Crossmembers 16” oc
Floor	2" Treated Pine Lumber Deck Available Options [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck (Excluding Tail) [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	9" x 72" Treadplate Removable Steel Fenders Available Options [-FE01] 1/4" DP HD Weld on Fenders Tandem Axle [-FE02] 1/4" DP HD Weld on Fenders Triple Axle [-FE04] Weld on Fenders
Stake Pockets	24" Stake Pocket Spacing Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Tilt Deck Dimensions	74" Wide Tiltable Deck
Rubrail	Rubrail & Stake Pockets
Tie-Downs	(6) Flushmount D-rings Available Options [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Hydraulics	Available Options [-PUGD] Power Up/Down & Gravity Down Upgrade
Storage	Available Options [-GNC2] 2 GN Lockable Chain Holders [-GNCH] GN Lockable Chain Holder [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade [-TB05] Front Toolbox [-TB06] Locking Lid Over Tongue
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools
Tilt Deck Angle	11°
Tail	[T] 16' Tilt Deck
Other Options	Available Options [-FR01] Fork Rack [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-TRA1] 1/2 x 1/2 Square Traction Bars

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.

HYDRAULIC CUSHIONED GRAVITY TILT

Using a hydraulic cylinder and proportioning valve to control the rate of tilt bed movement, our hydraulic powered gravity tilt provides an extra level of safety and security when loading and unloading cargo.

CARGO CONTROL STANDARD

Benefit from standard stake pockets for essential cargo securement, and then add optional D-rings to further keep cargo secured and ready for safe transportation.
