Gooseneck Deckovers / LY

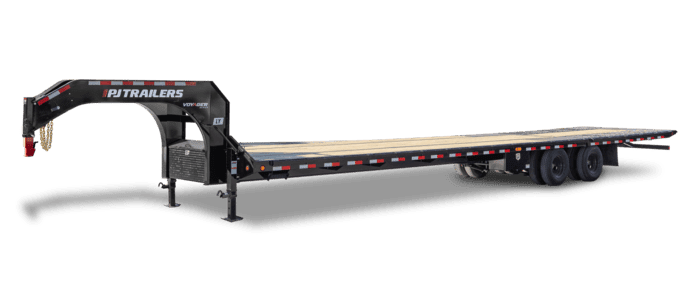

Voyager Hydraulic Dovetail Gooseneck (LY)

This all-new gooseneck trailer is engineered for the toughest jobs. Featuring a 12' hydraulic dovetail with a 12,000 lb. loading capacity and a 12-degree ramp angle, it makes loading heavy equipment fast and easy. The Demco EZ Latch Gooseneck Coupler ensures secure, hassle-free hitching, while the Formed ProBeam™ Gooseneck delivers unmatched strength and durability—mile after mile.

View Inventory

Trailer Specifications

32 – 40'

Width

102"

Lengths

25,000 lbs

GVWR

14,007—21,460 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[A2BS] (2) 10,000# Axles Electric / Spring Available Options [A2HS] (2) 10,000# Axles Elec/Hyd Disc (1,600 PSI Pump) / Spring [C2BS] (2) 12,000# Axles Electric / Spring [C2HS] (2) 12,000# Axles Elec/Hyd Disc (1,600 PSI Pump) / Spring [D2BS] (2) 12,000# w/14 Ply LR-G Dual T&W Electric / Spring [D2HS] (2) 12,000# w/14 Ply LR-G Dual T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring [S2BS] (2) 10,000# w/235/75R17.5" LR-J Single T&W Electric / Spring [S2HS] (2) 10,000# w/235/75R17.5" LR-J Single T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring [T2BS] (2) 10,000# w/14 Ply LR-G Dual T&W Electric / Spring [T2HS] (2) 10,000# w/14 Ply LR-G Dual T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring
Suspension	5-Leaf Slipper Spring Suspension
Tongue	14" x 22 lb. I-beam Tongue
Coupler	[Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox
Safety Chains	3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Spring Loaded Drop Leg Jack (12,000 lb.) Available Options [-JA01] Dual HD 25k Jost Jacks [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA24] 2 Hyd. Jacks, Single Pump/Battery, 4 Button Pendant that Operates Jacks & Tail
Frame	14" x 22 lb. I-Beam Main Frame
Cross-Members	3” Channel Crossmembers 16” oc Available Options [-CM12] 12" OC Crossmembers
Floor	2" Treated Pine Lumber Deck Available Options [-FLRO] Rough Oak Floor
Stake Pockets	24" Stake Pocket Spacing
Lights	Available Options [-LT11] Auxiliary Work Light Package
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,080 lbs.)
Spare Mount	Under-Deck Mounted Spare
Spare Tire	ST235/80 R-16 Load Range E (Included)`
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets
Tie-Downs	Available Options [-RTST] 4" Ratchets every 4ft w/ Slide Track [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	12' Hydraulic Tail - Power Up / Down
Steps	Monster Steps (Both Sides)
Storage	Available Options [-GNCH] GN Lockable Chain Holder [-TB02] Top Riser Toolbox
Cargo Winch	Available Options [-WN02] HD GN Winch Plate [-WN18] Winch 18K w/HD Plate & Battery
Pipe Chain Spools	Pipe Spools
Tail	[S] 12' Hydraulic Dovetail w/ 12k Lift and 12° Ramp Angle
Lift Cylinder	Dual 3.5" x 16" Hyd. Cylinders
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV30] 30,000 GVWR Must have 30k coupler/12k axles or higher [-RAWR] Hinged Side Mount Wood Rack
