Gooseneck Deckovers / LX

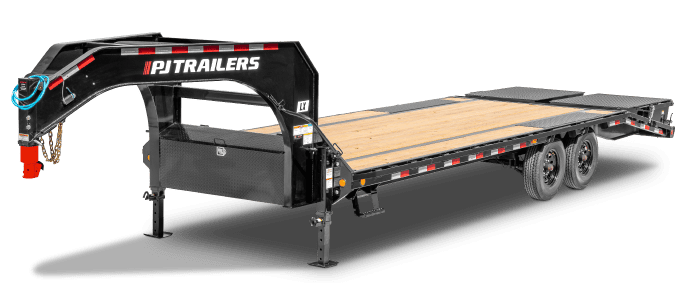

Low-Pro Flatdeck With 8K Singles (LX)

Delivering a wide deck for more space and constructed with a durable frame for more strength (17,500 lbs G.V.W.R), the LX delivers a whole lot more cargo capacity without the need for dual-wheel axles. No matter what path you choose to take, this trailer will be there right by your side through thick and thin.

View Inventory

Trailer Specifications

20 – 40'

Width

102"

Lengths

17,500 lbs

GVWR

10,540—12,740 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring Available Options [82HS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Elec/Hyd Disc (1,600 PSI Pump) / Spring [K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	ProBeam TM Neck
Coupler	[R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox Available Options [Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox
Safety Chains	3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Spring Loaded Drop Leg Jack (12,000 lb.) Available Options [-JA01] Dual HD 25k Jost Jacks [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA08] Dual 10k Jacks at Rear of Deck
Frame	12" x 14 lb. I-Beam Main Frame (Pierced) Available Options [-FR19] 19 lb. I-Beam Main Frame, Riser & Neck [-FR22] 22 lb. I-Beam Main Frame [-CM12] 12" OC Crossmembers [-FRFB] Frame Bridging [-FRTG] TwistGuard™ (Under 30')
Cross-Members	3" Crossmembers on 16" Centers
Floor	2" Treated Pine Lumber Deck Available Options [-BWFT] Blackwood Pro Full Deck (Tail Only) [-FLWD] Add Wood to Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF05] ¼" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	Diamond Plate Low-Pro Fenders
Ramps	8' Slide-In Channel Ramps Available Options [-NRNP] No Ramps No Ramp Pockets
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only) [-SL02] 2 Extra Side Marker 3/4" Bullet Lights, 1 Per Side [-LT11] Auxiliary Work Light Package (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 14 (4,080 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Rubrail	2" Rubrail with pipe spools
Tie-Downs	Available Options [-RT01] 1 Pair Weld-On Ratchets [-RTST] 4" Ratchets every 4ft w/ Slide Track [-2RST] 4" Ratchets every 4ft w/ Slide Track (BOTH SIDES) [-UFTD] Under Frame Tie Down Flat [-UFT2] Under Frame Tie Down Flat on Both Sides [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Steps	Retractable Monster Step on Both Sides
Storage	Available Options [-GNCH] GN Lockable Chain Holder [-SB02] 1 Side-mount Toolbox 45"x14" [-SB03] 1 Side-mount Toolbox 72"x14" [-TB02] Top Riser Toolbox
Cargo Winch	Available Options [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable
Tail	[S] Straight Deck w/ 8' Slide-in Ramps Available Options [W] 5' Dovetail w/ 2 Flip-over Monster Ramps [Z] 5' Dovetail w/ Power Tail (Pat. Pend. TX Only)
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-DON3] Rem Deck on Neck w/SlideTrk & 2 Ratchets(102"x96") [-GV25] 25,900 GVWR [-MF01] Mud Flaps Single Wheel Deckover [-RASA] Ramp Support Arms [-RAWR] Hinged Side Mount Wood Rack

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.

CARGO CONTROL STANDARD

Benefit from standard stake pockets for essential cargo securement, and then add optional D-rings to further keep cargo secured and ready for safe transportation.

DEMCO EZ LATCH GOOSENECK COUPLER

The first-of-its-kind, the Demco EZ Latch Gooseneck Coupler offers industry-leading reliability together with a custom housing for the ultimate in convenience. Are you ready? Then hitch up and go.
