Gooseneck Deckovers / LD

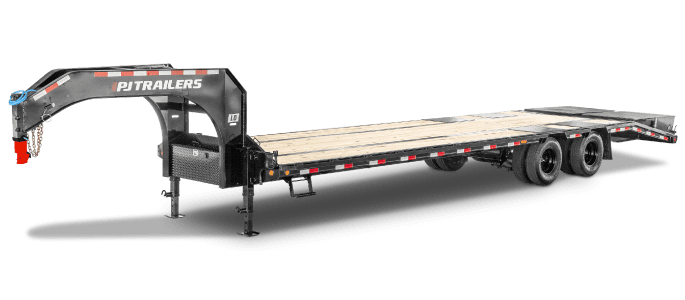

Low-Pro Flatdeck With Duals (LD)

This powerful gooseneck trailer helps you take on the toughest jobs, even in rough terrain. With 10K axles and forward self-adjusting brakes, plus a heavy-duty adjustable suspension, the LD is built to give you long-lasting strength and durability. Whether you're hauling heavy equipment or vehicles, it's ready to help you get the job done and achieve your goals.

View Inventory

Trailer Specifications

20 – 44'

Width

102"

Lengths

25,000 lbs

GVWR

16,770—19,370 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[A2BS] (2) 10,000# Axles Electric / Spring Available Options [C2BS] (2) 12,000# Axles Electric / Spring [C2HA] (2) 12,000# Axles Elec/Hyd Disc (1,600 PSI Pump) / Air Ride [C2HS] (2) 12,000# Axles Elec/Hyd Disc (1,600 PSI Pump) / Spring [D2BS] (2) 12,000# w/14 Ply LR-G Dual T&W Electric / Spring [D2HS] (2) 12,000# w/14 Ply LR-G Dual T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring [J2GS] (2) 15,000# w/215/75R17.5" LR-H Dual T&W Elec/Hyd Drum (1,000 PSI Pump) / Spring [N2HA] (2) 12,000# w/215/75R17.5" LR-H Dual T&W Elec/Hyd Disc (1,600 PSI Pump) / Air Ride [S2BS] (2) 10,000# w/235/75R17.5" LR-J Single T&W Electric / Spring [S2HS] (2) 10,000# w/235/75R17.5" LR-J Single T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring [T2BS] (2) 10,000# w/14 Ply LR-G Dual T&W Electric / Spring [T2HS] (2) 10,000# w/14 Ply LR-G Dual T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring
Suspension	HDSS Adjustable Suspension
Tongue	12" x 19 lb. I-beam Tongue (ProBeam™)
Coupler	[Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox Available Options [Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox
Safety Chains	3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	(2) Drop Leg Jacks (10,000 lb.) Available Options [-JA01] Dual HD 25k Jost Jacks [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA08] Dual 10k Jacks at Rear of Deck [-JA14] 2 Hydraulic Jacks (w/single pump & diverter)
Frame	12" x 19 lb. I-Beam Main Frame\|TwistGuard™ standard on 30' and up Available Options [-FR22] 22 lb. I-Beam Main Frame [-CM12] 12" OC Crossmembers [-FRFB] Frame Bridging [-FRTG] TwistGuard™ (Under 30')
Cross-Members	3” Channel Crossmembers 16” oc
Floor	2" Treated Pine Lumber Deck Available Options [-BWFT] Blackwood Pro Tail (Excluding Deck) [-FLWD] Add Wood to Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck (Excluding Tail) [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF05] ¼" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	Diamond Plate Low-Pro Fenders
Ramps	8' Slide-In Channel Ramps Available Options [-NRNP] No Ramps No Ramp Pockets
Stake Pockets	24" Stake Pocket Spacing
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only) [-SL02] 2 Extra Side Marker 3/4" Bullet Lights, 1 Per Side [-LT11] Auxiliary Work Light Package (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,080 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [0] Primer + Black Powder Coat [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!)
Rubrail	Rubrail & Stake Pockets
Tie-Downs	Available Options [-RT01] 1 Pair Weld-On Ratchets [-RTST] 4" Ratchets every 4ft w/ Slide Track [-2RST] 4" Ratchets every 4ft w/ Slide Track (BOTH SIDES) [-UFTD] Under Frame Tie Down Flat [-UFT2] Under Frame Tie Down Flat on Both Sides [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway Kit w/ Charger
Steps	Retractable Monster Step on Both Sides
Storage	Available Options [-DA02] 2 Daikin toolboxes [-GNCH] GN Lockable Chain Holder [-SB02] 1 Side-mount Toolbox 45" x 14" [-SB03] 1 Side-mount Toolbox 72" x 14" [-TB02] Top Riser Toolbox
Cargo Winch	Available Options [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools
Twist Guard™	TwistGuard™ Standard on 30' and Up
Tail	[S] Straight Deck w/ 2 Slide-in Ramps Available Options [F] 5' Dovetail w/ 2 Flip-over Ramps [W] 5' Dovetail w/ 2 Flip-over Monster Ramps [Z] 5' Dovetail w/ Power Tail (Pat. Pend. TX Only)
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-DON3] Rem Deck on Neck w/SlideTrk & 2 Ratchets(102"x96") [-GV25] 25,900 GVWR Must Select 12K Axles [-GV30] 30,000 GVWR Must have 30k coupler/12k axles or higher [-RASA] Ramp Support Arms [-RAWR] Hinged Side Mount Wood Rack

Model Benefits

TWISTGUARDTM FRAME DESIGN

Using lateral torsion supports, this innovative feature is specifically engineered to counter rotational forces in the frame during operation. It is standard on models 30' and up or optional on shorter lengths.

Formed ProBeam™ Gooseneck

Featuring a sleek new shape, the Formed ProBeam™ Gooseneck is constructed from a single piece of heavy-duty steel. It's been redesigned to help reduce weight and redistribute stress points.

DEMCO EZ LATCH GOOSENECK COUPLER

The first-of-its-kind, the Demco EZ Latch Gooseneck Coupler offers industry-leading reliability together with a custom housing for the ultimate in convenience. Are you ready? Then hitch up and go.
