Deckovers / L7

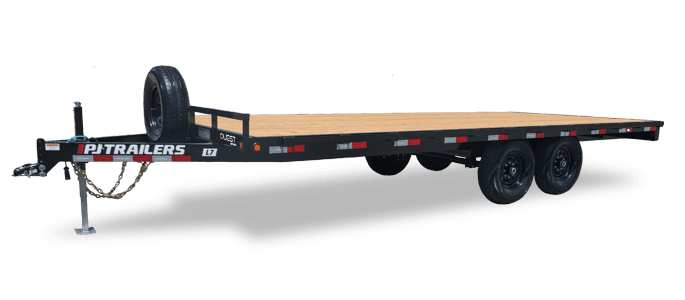

6" Channel Deckover (L7)

The L7 deckover trailer is built for professionals with a durable 6-inch channel frame and tongue. It offers a 102" wide deck, 35" deck height, full-length rubrail, and stake pockets for secure hauling. Standard slide-in ramps and 7K axles with forward self-adjusting brakes ensure reliability, while the 7000 lb. drop-leg jack adds stability during setup.

View Inventory

Trailer Specifications

18 – 22'

Width

101"

Lengths

14,000 lbs

GVWR

10,400—10,840 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	6" Channel Tongue
Coupler	[C] BP 2-5/16" Adjustable Available Options [P] 3" Pintle Eye - Channel-Mount [J] BP 2 5/16" Adjustable, Demco EZ-Latch
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	7,000# Top Wind Drop Leg Jack
Frame	6" Channel Frame
Cross-Members	3" Channel Crossmembers on 16" Centers
Bump Rail	Tube Frame Headboard
Floor	2" Treated Pine Lumber Deck
Ramps	8' Slide in Ramps w/ Holders w/ integrated Ramp Door
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Spare Mount	Front Spare Tire Mount
Spare Tire	Available Options [-SP01] Spare Tire (Default Tire)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [0] Primer + Black Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Breakaway System	Electric Breakaway System w/ Charger
Other Options	Available Options [-GV09] 9,900 G.V.W.R.

Model Benefits

SELF-ADJUSTING BRAKES

Foward Seld-Adjusting Brakes help maximize your time on the road with optimal performance.

VERSATILE FRONT BUMPER RAIL

The tube design bumper railer provides stopping point when driving up equipment, as well as forward stability and additional flexibility for securing the load.
