Deckovers / L6

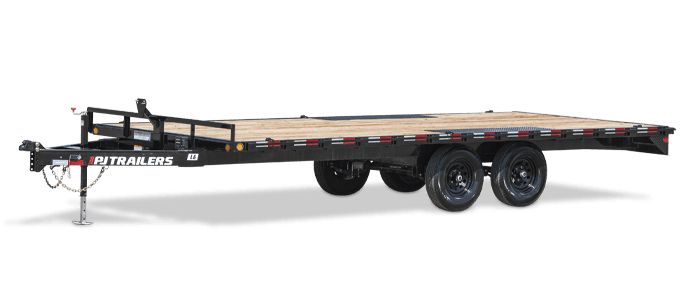

Medium Duty Deckover 6" Channel (L6)

Built for agricultural and industrial operations, the L6 is ready to haul anything from construction materials and machinery to large hay bales. Get through thick and thin with the L6 to conquer the next horizon—today, tomorrow, and every day after.

View Inventory

Trailer Specifications

16 – 24'

Width

101"

Lengths

9,990 lbs

GVWR

6,350—7,179 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[52BS] (2) 5,200# Electric / Spring Available Options [52BS] (2) 5,200# Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	6" Channel Tongue
Coupler	[J] BP 2-5/16" Adjustable (14,000 lb.) Available Options [J] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (20,000 lb.)
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Top Wind Drop Leg Jack (8,000 lb.) Available Options [-JA09] Upgrade to Single 10k Jack [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	6" Channel Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Floor	2" Treated Pine Lumber Deck Available Options [-FLWD] Add Wood to Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	Diamond Plate Low-Pro Fenders
Ramps	6' 6" Slide-In Channel Ramps Available Options [-NRNP] No Ramps No Ramp Pockets
Stake Pockets	Stake Pockets along both sides (Quantity depends on length) Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST225/75R15 Radial Tires 8 ply (2,540 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Rubrail	1" Rubrail
Tie-Downs	Available Options [-RT01] 1 Pair Weld-On Ratchets [-RTST] 4" Ratchets every 4ft w/ Slide Track [-2RST] 4" Ratchets every 4ft w/ Slide Track (BOTH SIDES) [-UFTD] Under Frame Tie Down Flat [-UFT2] Under Frame Tie Down Flat on Both Sides [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings [-SRRR] 2" Rubrail
Breakaway System	Electric Breakaway Kit w/ Charger
Storage	Available Options [-SB01] 1 Side-mount Toolbox 30"x14" [-SB04] 2 Side-mount Toolboxes 30"x14" [-SB07] 3 Side-mount Toolboxes 30"x14" [-SB10] 4 Side-mount Toolboxes 30"x14" [-TB04] Full Size Toolbox (Bumper Pull) [-TB05] Front Toolbox
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN12] Winch 12.5K w/Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools
Tail	[S] Straight Deck w/24x 6 ft Slide-in Ramps Exp Metal Available Options [A] 3' Dovetail w/24 x 6' Slide-in Ramps Exp Metal [B] 3' Dovetail w/ 2, 16" x 60" Foldup Ramps
Other Options	Available Options [-MF01] Mud Flaps Single Wheel Deckover

Model Benefits

HEAVY DUTY RAMPS (OPTIONAL)

Optimize your loading experience with heavy-duty ramps, designed to make loading equipment faster, safer, and easier. Plus, they're covered in expanded metal mesh for extra grip and stability.

RUB RAIL, STAKE POCKETS, & PIPE SPOOLS

Experience comprehensive load securement with standard rub rail, stake pockets, and pipe chain spool. No matter what you are hauling, you'll have everything you need to tie down and secure your load with confidence.

DIVERSE DECKING OPTIONS

Enhance your trailer's durability or looks with our versatile decking options. You can easily customize your trailer to your unique requirements by choosing from Diamond Plate Steel, Rough Oak, or Blackwood Pro.

TOOL TRAY IN TONGUE

Conveniently located inside the tongue, our resourceful tool tray accommodates chains, tools, and other essential equipment ensuring what you need is always within reach and ready for the job at hand.
