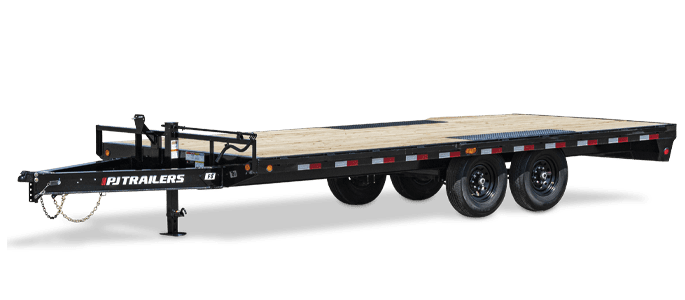

8" I-Beam Deckover (F8)

From sun up to sun down—24/7—the F8 overcomes challenging conditions and obstacles with its low-profile bed, lifetime LED lighting, and powerful I-beam frame. Available with up to a 16,000 lbs G.V.W.R., it’s purpose-built to haul big loads and heavy equipment in agricultural, construction, and landscaping applications. You work hard for your dreams; isn’t it time to get a trailer that does the same?

View Inventory

Trailer Specifications

16 – 30'

Width

102"

Lengths

14,000 lbs

GVWR

6,770—11,400 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring [B2BS] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires Electric / Spring [K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	8" I-beam Tongue
Coupler	[J] BP 2-5/16" Adjustable (14,000 lb.) Available Options [J] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Drop Leg Jack (10,000lb) Available Options [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA08] Dual 10k Jacks at Rear of Deck [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA18] Dual 2-Speed Jacks (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP
Frame	8" x 10 lb. I-Beam Main Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Bump Rail	Front Bump Rail
Floor	2" Treated Pine Lumber Deck Available Options [-BWFT] Blackwood Pro Full Deck (Tail Only) [-FLWD] Add Wood to Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Ramps	6' 6" Slide-In Channel Ramps Available Options [-NRNP] No Ramps No Ramp Pockets
Stake Pockets	Stake Pockets along both sides (Quantity depends on length) Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [0] Primer + Black Powder Coat (Texas Only) [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Rubrail	2" Rubrail
Tie-Downs	Available Options [-RT01] 1 Pair Weld-On Ratchets [-RTST] 4" Ratchets every 4ft w/ Slide Track [-2RST] 4" Ratchets every 4ft w/ Slide Track (BOTH SIDES) [-UFTD] Under Frame Tie Down Flat [-UFT2] Under Frame Tie Down Flat on Both Sides [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway Kit w/ Charger
Storage	Tool Tray in Tongue Available Options [-SB01] 1 Side-mount Toolbox 30"x14" [-SB02] 1 Side-mount Toolbox 45"x14" [-SB03] 1 Side-mount Toolbox 72"x14" [-TB03] Full Size Divided Toolbox Upgrade [-TB04] Full Size Toolbox (Bumper Pull) [-TB05] Front Toolbox [-TB06] Locking Lid Over Tongue
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable [-WNRR] Roller on Rear of Deck for Winch Cable
Tail	[S] Straight Deck w/ 6'6" Slide-in Ramps Available Options [A] 3' Dovetail w/ 5' Slide-in Ramps (18' and up) [B] 3' Dovetail w/ 2, 16" x 60" Foldup Ramps [D] 3' Dovetail w/ 2, 31" x 66" HD Foldup Ramps [P] 4' Dove with 2 Flipover Ramps (20' and up) [Y] 4' Dove with 4' Monster Ramps (20' and up)
Other Options	Available Options [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-MF01] Mud Flaps Single Wheel Deckover [-RASA] Ramp Support Arms [-RS01] Rear Support Stands

Model Benefits

RUB RAIL, STAKE POCKETS, & PIPE SPOOLS

Experience comprehensive load securement with standard rub rail, stake pockets, and pipe chain spool. No matter what you are hauling, you'll have everything you need to tie down and secure your load with confidence.

DIVERSE DECKING OPTIONS

Enhance your trailer's durability or looks with our versatile decking options. You can easily customize your trailer to your unique requirements by choosing from Diamond Plate Steel, Rough Oak, or Blackwood Pro.

MONSTER RAMPS WITH HOLD-DOWN LATCHES (OPTIONAL)

Available as an option, Monster Ramps are ultra-wide and fold flat to the trailer deck, making unloading and loading easier than ever before. Plus, they now include hold-down latches for decreased vibration and rattling while in transit.

ULTRA-LOW 33" DECK HEIGHT

Experience loading and unloading that's easier than ever with an ultra-low profile deck. Plus, it drops the center of gravity for better and more secure towing during transport.
