Equipment Trailers / EV

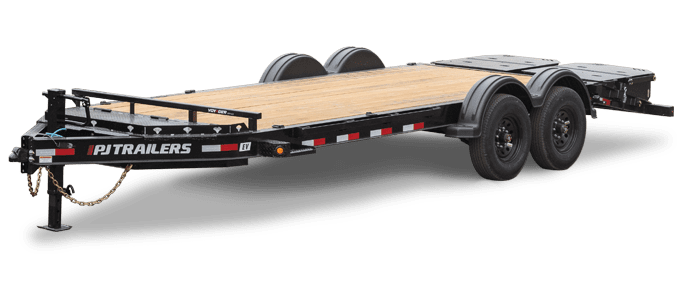

Seamless I-Beam Equipment Trailer (EV)

Designed for professionals who demand durability and innovation, this trailer incorporates the cutting-edge HaulGuard fenders by Minimizer. The EV also revolutionizes loading and unloading with its optional Self-Stabilizing Monster Ramps, alongside other customizable ramp solutions, providing unparalleled flexibility and safety for any hauling need.

View Inventory

Trailer Specifications

16 – 24'

Width

83"

Lengths

15,400 lbs

GVWR

12,135—12,545 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [72BS] (2) 7,000# Electric / Spring [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	8" x 10 lb. I-beam Tongue
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch Available Options 2-5/16" Demco EZ Latch Gooseneck Coupler [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Jack	Drop Leg Jack (12,000 lb.)
Frame	8" x 10 lb. I-Beam Main Frame
Cross-Members	3” Channel Crossmembers 16” oc
Floor	2" Treated Pine Lumber Deck
Fenders	Haulguard ™ Composite Fenders
Stake Pockets	24" Stake Pocket Spacing
Lights	DOT Approved Flushmount Lifetime LED Lights
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	235/80R16 Radial Tires (3,520 lb)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets
Tie-Downs	(6) D-rings Available Options [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway Kit w/ Charger
Steps	Monster Steps (Both Sides)
Storage	Full-Tongue Locking Toolbox w/ Exterior Lashing Points
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only)
Tail	[E] 3.5' Dovetail w/ 5' Fold-up Ramps Available Options [R] Straight Deck w/ 5' Slide-in Ramps
Other Options	Available Options [-FR01] Fork Rack [-GV09] 9,900 G.V.W.R.

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.
