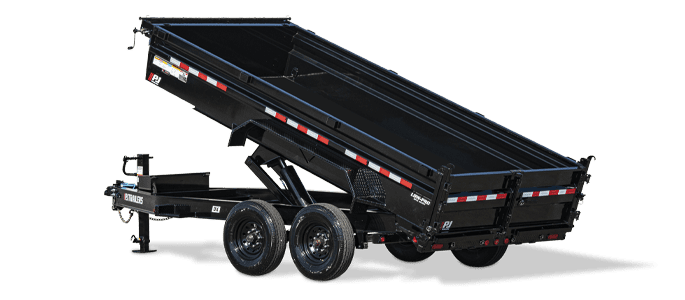

16K Low-Profile Dump PRO (DX)

Combining a heavy-duty frame and sturdy construction with an ultra-low profile for simplified loading, unloading, and transporting, the DX is designed from the ground up for construction and landscaping professionals. No matter the adventure, the DX is equipped to handle the long haul. Long-lasting. Strong. Convenient. The DX is ready to conquer whatever’s next.

View Inventory

Trailer Specifications

12'

Width

83"

Lengths

16,000 lbs

GVWR

11,550—12,200 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring Available Options [K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	8" x 10 lb. Formed I-beam Tongue
Coupler	[T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6 hole Channel Bracket Available Options [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) [S] GN 2-5/16" Square (25,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Jack	Drop Leg Jack (12,000 lb.) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	8" x 10 lb. Formed I-Beam Main Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Floor	7ga. Steel Bed Available Options [-SF06] 7ga Smooth Plate Steel Floor w/ 4 D-Rings
Fenders	1/8" Treadplate Steel Fenders
Ramps	6' 6" Slide-In Channel Ramps
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 14 ply (4,080 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [B] Primer + Jet Blue Coat (NEW!) (Texas Only) [J] Primer + Industrial Green Coat (NEW!) (Texas Only) [Y] Primer + Industrial Yellow Coat (NEW!) (Texas Only) [G] Primer + Slime Green Coat (NEW!) (Texas Only)
Tie-Downs	(4) D-Rings (Welded inside the Box) Available Options [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway Kit w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down
Lift Type	Scissor Lift
Sides	24" 10ga. Steel Sides Available Options [-SE24] 24" Side Extensions (Solid) [-SW03] 3ft Tall Sides [-SW04] 4ft Tall Sides
Steps	Ultra-Wide Monster Step
Storage	Lockable Full Tongue Toolbox (Houses Battery, Pump + Storage) Available Options [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade
Tarp	Roll-up Tarp Kit (Pull Bar) 7' x 20'
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN04] Gooseneck Winch Plate [-WN18] Winch 18K w/HD Plate & Battery
Tail	[T] Split / Spreader Gate
Dump Gate	2-Way Gate (Barn Doors & Spreader Gate)
Lift Cylinder	6" x 16" Cylinder w/Scissor & 6" x 21" on 16'
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-RS01] Rear Support Stands

Model Benefits

DEMCO EZ LATCH COUPLER

Featuring a simple and secure design, the Demco EZ Latch Coupler offers industry-leading reliability together with a custom housing for the ultimate in convenience. Are you ready? Then hitch up and go.

UNIWALL STEEL TECHNOLOGY

Using form-rolled steel to add structural integrity, our UniWall Steel Technology reduces corrosion-vulnerable seams while lowering the trailer's weight and increasing capacity. An innovative technology that delivers an overall better experience for customers.

SCISSOR LIFT WITH POWERFUL CYLINDER

Experience lifting power like never before with our Scissor-Lift Hydraulic System. Featuring strong and efficient lifting capabilities, a stable lifting platform, and power-up/power-down functionality for quick dump cycles, this system will keep you hustling from dawn to dusk.

OIL BATH AXLES WITH VALCRUM OIL CAPS

Our oil bath hubs and valcrum caps simplify axle maintenance, enable easy oil level checks, and eliminate concerns about broken plastic caps. In other words, it's designed to keep you on the road for longer before having to perform maintenance.
