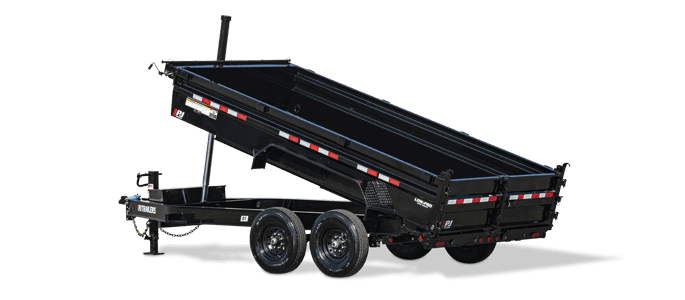

83" Pro-Lift Dump (DT)

For professionals in construction, landscaping, and even waste management, the DT is engineered and designed to haul and transport heavy-duty, bulky cargo and debris. And it gets the job done with its first-rate 12-ton front-mounted telescopic cylinder and adaptable 2-way gate system, making unloading and loading an easy task instead of a back-breaking one. We know you’re driven; it’s time to get a trailer that has the same drive as you.

View Inventory

Trailer Specifications

14 – 16'

Width

83"

Lengths

14,000 lbs

GVWR

9,750—11,920 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [72BD] (2) 7,000# Electric / Drop Axle [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring [92BD] (2) 7,000# w/14 Ply LR-G Tires Electric / Drop Axle [K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles Electric / Spring [Y2BS] (2) 7,000# w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	8" x 13 lb. I-beam Tongue
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch Available Options [A] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Jack	Drop Leg Jack (12,000 lb.) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	8" x 13 lb. I-Beam Main Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Floor	7ga. Steel Bed Available Options [-SF06] 7ga Smooth Plate Steel Floor w/ 4 D-Rings
Fenders	1/8" Treadplate Steel Fenders
Ramps	6' 6" Slide-In Channel Ramps
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Black Powder Coat Available Options View Color Options [K] Black Powder Coat [0] Primer + Black Powder Coat (Texas Only) [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tie-Downs	(4) D-Rings (Welded inside the Box) Available Options [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up / Gravity Down
Lift Type	3-Stage Telescopic Cylinder
Sides	24" 10ga. UniWall Steel Sides Available Options [-SE24] 24" Side Extensions (Solid) [-SW03] 3ft Tall Sides [-SW04] 4ft Tall Sides
Steps	Treadplate Step (Both Sides)
Storage	Available Options [-TB02] Top Riser Toolbox
Tarp	Roll-up Tarp Kit (Pull Bar) 7' x 20'
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN04] Gooseneck Winch Plate [-WN12] Winch 12K w/Plate & Battery
Tail	[T] Split / Spreader Gate
Dump Gate	2-Way Gate (Barn Doors & Spreader Gate)
Lift Cylinder	120" Cylinder on 14' length & 144" Cylinder on 16' length
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-RS01] Rear Support Stands

Model Benefits

UNIWALL STEEL TECHNOLOGY

Using form-rolled steel to add structural integrity, our UniWall Steel Technology reduces corrosion-vulnerable seams while lowering the trailer's weight and increasing capacity. An innovative technology that delivers an overall better experience for customers.

SEAMLESS I-BEAM FRAME DESIGN

With its sturdy construction and reliable performance, our seamless I-Beam offers a more robust and dependable frame that ensures your dump trailer can take on the most demanding jobs.

12-TON TELESCOPIC CYLINDER

Featuring a 3-stage telescopic cylinder mounted on the tongue, this trailer features a smooth lift experience from start to finish. Plus, you'll get more dump cycles per charged battery.

3' & 4' HIGH SIDES OPTIONS

Our 3' and 4' high side options are great for hauling bulky loads. When using these options with the included rollup tarp kit, you can safely transport loads to and from job sites.
