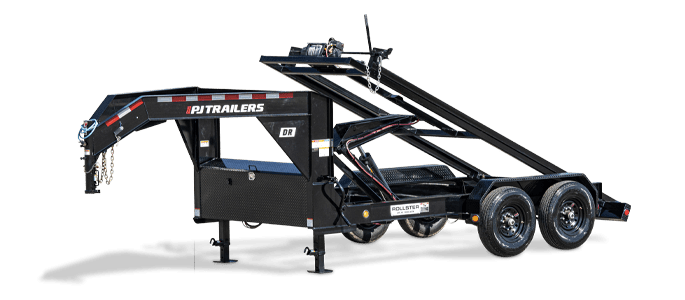

Roll-Off Dump (DR)

Every part is built to last, so you get professional-grade strength in the toughest conditions. The durable I-beam frame, heavy-duty walls, and reinforced sides stand up to hard use. Plus, the winch is made for roll-off work, and the scissor-lift system keeps things running smoothly. This trailer, like all our products, takes a beating and keeps going — so you can too. Visit a PJ Trailers Dealer and find your perfect trailer in stock.

View Inventory

Trailer Specifications

14'

Width

83" (Bin) & 96" (Deck)

Lengths

14,000 lbs

GVWR

10,000—11,680 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	6" Channel Tongue
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch Available Options [A] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) [S] GN 2-5/16" Square (25,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Jack	Spring Loaded Drop Leg Jack (12,000 lb.) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA18] Dual 2-Speed Jacks (BP Only) [-JA19] 2 Hydraulic Jacks for BP
Frame	6" Channel Frame
Cross-Members	3" Channel Crossmembers on 16" Centers
Fenders	1/8" Treadplate Steel Fenders
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Breakaway System	Electric Breakaway System w/ Charger
Battery	(2) Power Volt Group 27 Batteries Available Options (2) Power Volt Group 27 Batteries
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down
Lift Type	Scissor Lift
Sides	48" (Roll-Off Bin)
Cargo Winch	Available Options [-WN02] HD GN Winch Plate
Tail	[S] Straight Deck
Lift Cylinder	5" x 21" Cylinder w/Scissor Lift
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-KD01] 1 - Roll Off Dump w/Barn Door (Bin) [-KD02] 2 - 1 - Roll Off Dump w/Barn Door (Bin) [-KD03] 3 - 1 - Roll Off Dump w/Barn Door (Bin) [-KD04] 4 - 1 - Roll Off Dump w/Barn Door (Bin) [-KD05] 5 - 1 - Roll Off Dump w/Barn Door (Bin) [-KD06] 6 - 1 - Roll Off Dump w/Barn Door (Bin)

Model Benefits

SCISSOR LIFT WITH POWERFUL CYLINDER

Experience lifting power like never before with our Scissor-Lift Hydraulic System. Featuring strong and efficient lifting capabilities, a stable lifting platform, and power-up/power-down functionality for quick dump cycles, this system will keep you hustling from dawn to dusk.

INDUSTRIAL-STRENGTH ROLL-OFF WINCH

Engineered for regular, heavy-duty use, this industry-leading, robust winch is guaranteed to deliver smooth and efficient performance under the toughest conditions. Go ahead and work hard; this winch will be right there with you.

DUAL GROUP 27 BATTERIES

These deep-cycle batteries are purpose-built for maximum load applications. Rated with a higher amp hour, these Group 27 Batteries will give you more loads and unloads in the field.

STACKABLE 13.2 YD3 BINS

While you might not be able to be everywhere at once, your dump bins can. Offering ample capacity for your dump trailer, our stackable 13.2 yd3 bins feature enough space to accommodate a single-room renovation or up to 85 trash bags of material.
