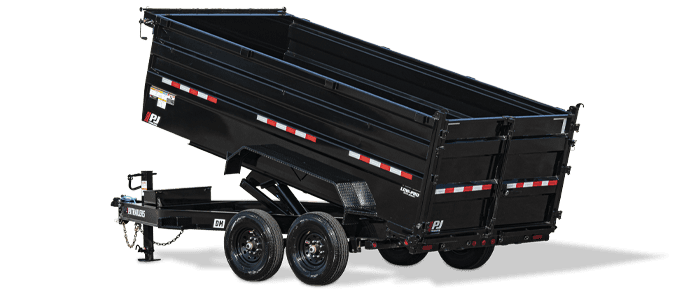

83" Low-Pro High Side Dump (DM)

Featuring a class-leading scissor lift cylinder and slide-in ramps to make unloading and loading effortless, this powerful dump trailer has the strength, durability, and power needed when the going gets tough. And its 48”, reinforced high sides (with optional 36’’ sides available) are perfect when you’re hauling and dumping uneven or loose materials. In other words, the DM is here to help you forge your own path—no matter what you’re hauling.

View Inventory

Trailer Specifications

12 – 16'

Width

83"

Lengths

14,000 lbs

GVWR

9,130—10,360 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [72BD] (2) 7,000# Electric / Drop Axle [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring [92BD] (2) 7,000# w/14 Ply LR-G Tires Electric / Drop Axle [Y2BS] (2) 7,000# w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	8" x 10 lb. I-beam Tongue
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch Available Options [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) [S] GN 2-5/16" Square (25,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Drop Leg Jack (12,000 lb.) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	8" x 10 lb. I-Beam Main Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3” Channel Crossmembers 16” oc
Floor	7ga. Steel Bed
Fenders	1/8" Treadplate Steel Fenders
Ramps	6' 5" Slide-In Channel Ramps
Stake Pockets	24" Stake Pocket Spacing
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Tie-Downs	(4) D-Rings (Welded inside the Box) Available Options [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down
Lift Type	Scissor Lift
Sides	48" 10ga. UniWall Steel Sides Available Options [-SE24] 24" Side Extensions (Solid) [-SW03] 3ft Tall Sides
Stabilizers	Rear Stabilizer Stands
Steps	Ultra-Wide Monster Step (Driver's Side)
Storage	Lockable Full Tongue Toolbox (Houses Battery, Pump + Storage) Available Options [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade
Tarp	Roll-up Tarp Kit (Pull Bar) 7' x 20'
Cargo Winch	Available Options [-WN02] HD GN Winch Plate [-WN04] Gooseneck Winch Plate
Tail	[T] Split / Spreader Gate
Dump Gate	2-Way Gate (Barn Doors & Spreader Gate)
Lift Cylinder	5" x 17" Cylinder w/Scissor & 5" x 21" on 16'
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV09] 9,900 G.V.W.R.

Model Benefits

SEAMLESS I-BEAM FRAME DESIGN

With its sturdy construction and reliable performance, our seamless I-Beam offers a more robust and dependable frame that ensures your dump trailer can take on the most demanding jobs.

SCISSOR LIFT WITH POWERFUL CYLINDER

Experience lifting power like never before with our Scissor-Lift Hydraulic System. Featuring strong and efficient lifting capabilities, a stable lifting platform, and power-up/power-down functionality for quick dump cycles, this system will keep you hustling from dawn to dusk.

TALLER 36" SIDES (48" OPTIONAL)

Its above-average 36" dump box walls provide a large volume capacity and allow you to easily haul and transport various materials. Plus, its sturdy construction provides long-lasting performance for the long haul.
