Dump Trailers / DE

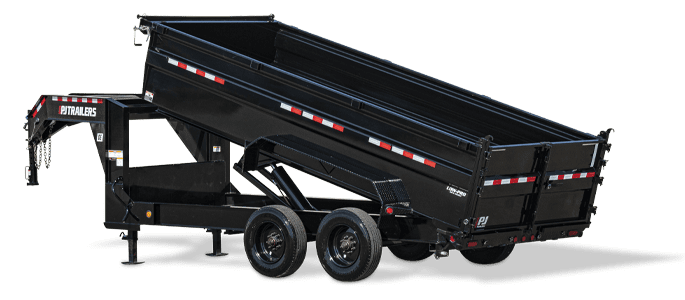

HD Low-Pro Dump (DE)

A more stable, secure, and strong trailer, the DE is outfitted with tandem torsion axles, and super single wheels to take on heavy-duty hauls and hefty loads. With a 20,000 lbs G.V.W.R., this trailer doesn’t joke around. It’s built and designed around the needs and requirements of those hauling in the most demanding and difficult industries and environments.

View Inventory

Trailer Specifications

16'

Width

82.5"

Lengths

20,000 lbs

GVWR

13,400 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[S2BT] (2) 10,000# w/235/75R17.5" LR-J Single T&W Electric / Torsion Available Options [S2BT] (2) 10,000# w/235/75R17.5" LR-J Single T&W Electric / Torsion
Suspension	Torsion Suspension
Tongue	10" x 19 lb. I-beam Tongue
Coupler	Available Options [R] GN 2-5/16" Round (25,000 lb.)
Jack	Spring Loaded Drop Leg Jack (12,000 lb.) Available Options [-JA01] Dual HD 25k Jost Jacks [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA21] Dual Jacks for BP
Frame	10" x 19 lb. I-Beam Main Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Floor	7ga. Steel Bed
Fenders	1/8" Treadplate Steel Fenders
Ramps	6' 6" Slide-In Channel Ramps
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/75/R17.5 Radial Tires 18 ply (6,005 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [B] Primer + Jet Blue Coat (NEW!) (Texas Only) [J] Primer + Industrial Green Coat (NEW!) (Texas Only) [Y] Primer + Industrial Yellow Coat (NEW!) (Texas Only) [G] Primer + Slime Green Coat (NEW!) (Texas Only)
Tie-Downs	(4) D-Rings (Welded inside the Box) Available Options [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down
Lift Type	Scissor Lift
Sides	36" 7 ga. UniWall Steel Sides Available Options [-SE24] 24" Side Extensions (Solid) [-SW04] 4ft Tall Sides
Storage	Available Options [-TB02] Top Riser Toolbox
Tarp	Roll-up Tarp Kit (Pull Bar) 7' x 20'
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN04] Gooseneck Winch Plate
Tail	[T] Split / Spreader Gate
Dump Gate	2-Way Gate (Barn Doors & Spreader Gate)
Lift Cylinder	6" x 21" Cylinder w/Scissor
Other Options	Available Options [-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-RS01] Rear Support Stands

Model Benefits

OIL BATH AXLES WITH VALCRUM OIL CAPS

Our oil bath hubs and valcrum caps simplify axle maintenance, enable easy oil level checks, and eliminate concerns about broken plastic caps. In other words, it's designed to keep you on the road for longer before having to perform maintenance.

7-GAUGE FLOOR & SIDES

Get an extra-tough box for your dump with our 7-gauge floor and sides. Its heavy duty construction helps ensure long-lasting performance that you can rely on no matter the job.

TORSION SUSPENSION

Delivering a lower deck height for improved loading, this advanced suspension technology also helps to provide a more stable and smooth ride on the road.

LESS TIRES FOR LESS MAINTENANCE

Our super-single wheels reduce the number of tires that you need to maintain, resulting in less hassle for you. Single wheels also provide enhanced maneuverability while minimizing stress on hubs and axle components.
