Dump Trailers / D7

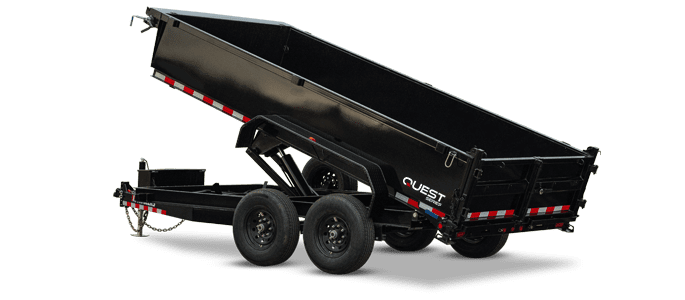

14K Dump Trailer (D7)

The D7 combines top-notch durability with unbeatable value. Built with a sturdy 6-inch channel frame and tongue, it offers exceptional strength and reliability. Priced affordably, this trailer comes equipped with key features such as a hydraulic scissor lift system with power up, power down, and gravity down options, forward self-adjusting brakes, and a heavy-duty adjustable coupler. Perfect for transporting both equipment and loose materials, the D7 is designed to handle the most demanding tasks with ease. Experience the remarkable value and superior quality of the D7 today.

View Inventory

Trailer Specifications

14'

Width

83"

Lengths

14,000 lbs

GVWR

10,340 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [72BS] (2) 7,000# Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	6" Channel Tongue
Coupler	[C] BP 2-5/16" Adjustable Available Options [P] 3" Pintle Eye - Channel-Mount (14,000 lb.) [J] BP 2 5/16" Adjustable, Demco EZ-Latch
Jack	7,000# Top Wind Drop Leg Jack
Frame	6" Channel Frame
Cross-Members	3" Crossmembers on 16" Centers
Floor	10ga. Steel Bed
Fenders	1/8" Treadplate Steel Fenders
Ramps	Slide in Ramps with Integrated Ramp Door
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	235/80R16 Radial Tires (3,520 lb)
Spare Tire	Available Options [-SP01] Spare Tire (Default Tire)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [B] Primer + Jet Blue Coat (NEW!) (Texas Only) [J] Primer + Industrial Green Coat (NEW!) (Texas Only) [Y] Primer + Industrial Yellow Coat (NEW!) (Texas Only) [G] Primer + Slime Green Coat (NEW!) (Texas Only)
Tie-Downs	(4) D-Rings (Welded inside the Box)
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Gate	Rear Combo Gate (Barn Doors & Spreader Gate)
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down
Lift Type	Scissor Lift
Sides	24" 10ga. Steel Sides
Tail	[S] Straight Deck w/ Rear Slide-in Ramps
Dump Gate	2-Way Gate (Barn Doors & Spreader Gate)
Lift Cylinder	5" x 17" Cylinder w/Scissor Lift
Other Options	Available Options [-GV09] 9,900 G.V.W.R.

Model Benefits

STANDARD TARP AND TARP SHROUD

With standard tarp system the D7 is ready to help you keep your load contained.

EQUIPMENT LOADING READY

Standard with Ramps, stabilizer jacks and D-Rings to help you load and secure the equipment you need for your job.

SCISSOR LIFT WITH CYLINDER

The Scissor-Lift Hydraulic System provides efficient lifting capabilities and a stable lifting platform with power-up, power-down, and gravity-down functionality for quick dump cycles.

AVAILABLE WITH 4' SIDES

Do you need a higher-capacity dump box for those big jobs? The D7 is also available with 4-foot-high sides. Contact your local PJ Trailers dealer today for more details!
