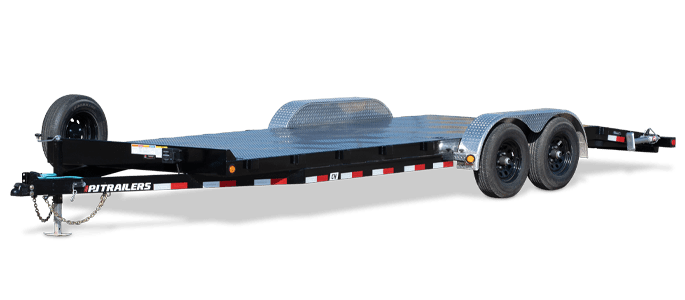

Steel Deck Car Hauler (CH)

Beautiful to look at and strong as a rock, the CH features an 11-gauge steel deck that delivers both top-tier hauling capabilities and an incredibly durable, reliable floor for your vehicle. Plus, we offer an optional aluminum rock shield for additional protection for the cargo you’ve worked so hard for. For looks and hauling, the CH does it all.

View Inventory

Trailer Specifications

18 – 22'

Width

83"

Lengths

7,000 lbs

GVWR

4,500—7,500 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[32CS] (2) 3,500# Axles, (1) Electric - (1) Idler / Spring Available Options [12CS] (2) 3,500# Axles, (1) Electric - (1) Idler / Spring w/ 225/75R15 Tire Upgrade [12BS] (2) 3,500# Axles Electric / Spring w/ 225/75R15 Tire Upgrade [32BS] (2) 3,500# Electric / Spring [52BS] (2) 5,200# Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension
Tongue	5" Channel Tongue
Coupler	[2] BP 2" A-Frame Available Options [2] BP 2" A-Frame [J] BP 2-5/16" Adjustable (14,000 lb.)
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)
Jack	8K Drop Leg Jack Available Options [-JA13] Rear Trailer Support Jacks
Frame	5" Channel Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" (12" OC Optional) Centers
Bump Rail	Front Bump Rail
Floor	11-Gauge Steel Diamond Plate
Fenders	Removeable Aluminum Treadplate Fenders Available Options [-FE05] Steel Diamond Plate Fenders
Ramps	5' Rapid Ramps
Stake Pockets	24" Stake Pocket Spacing
Wiring	All-Weather Wiring Harness (7-way RV)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets
Tie-Downs	(6) D-rings Available Options [-DR21] 1 Extra Pair Flushmount D-Rings [-SRRR] 2" Rubrail
Breakaway System	Electric Breakaway System w/ Charger
Storage	Available Options [-TB05] Front Toolbox
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN95] Winch 10k w/ Plate & Battery
Front Rock Shield	Available Options [-RCK1] Aluminum Front Rockshield
Tail	[P] 4' Dovetail w/ 5' Rear Slide-in Ramps

Model Benefits

REMOVABLE FENDERS

Removable fenders allow for safe and easy loading of your vehicle, simply by removing a couple of bolts. An additional feature is the extra working space around the wheels and axles when maintenance is required.

STEEL DECK

Our 11-gauge steel deck provides a highly durable, fluid-resistant floor. Plus, it includes D-rings and stake pockets to secure your load.

ROCK SHIELD

An optional aluminum rock shield bolts onto the trailer's redesigned bump rail to protect your precious cargo from road debris and rocks.

DOVETAIL & RAMPS

A 4' dovetail at the rear with 5' slide-in ramps make loading and unloading easier: providing an ultra-low loading angle for low-clearance vehicles and equipment.
