Equipment Trailers / CC

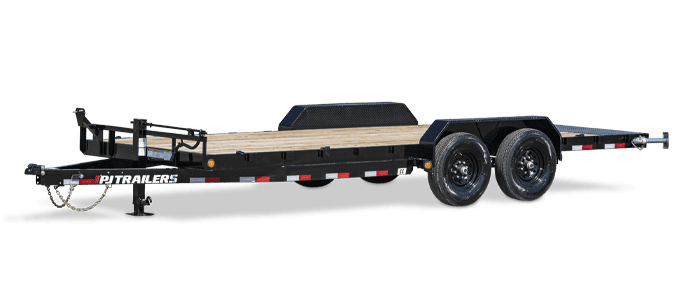

6" Channel Equipment (CC)

Powered by 7K axles (8,000 axles available as an option) and an 83-inch wide deck, the CC has both the versatility and strength to make sure whatever you’re hauling gets from point A to B safe and secure. Plus, depending on what you typically haul, you can choose from various ramp options and between a straight or dovetail deck—a trailer that’s ready to adapt for wherever life takes you.

View Inventory

Trailer Specifications

16 – 24'

Width

83"

Lengths

14,000 lbs

GVWR

11,300—20,780 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring [B2BS] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	6" Channel Tongue
Coupler	[J] BP 2-5/16" Adjustable (14,000 lb.) Available Options [J] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox [S] GN 2-5/16" Square (25,000 lb.) w/ Toolbox [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Spring Loaded Drop Leg Jack (12,000 lb.) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA13] Rear Trailer Support Jacks [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP
Frame	6" Channel Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3” Channel Crossmembers 16” oc
Bump Rail	Front Bump Rail
Floor	2" Treated Pine Lumber Deck Available Options [-BWFT] Blackwood Pro Full Deck (Tail Only) [-SF03] 11ga DP Steel Floor on Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	9" x 72" Treadplate Aluminum Fenders Available Options [-FE01] 1/4" DP HD Weld on Fenders Tandem Axle [-FE02] 1/4" DP HD Weld on Fenders Triple Axle [-FE04] Weld on Fenders
Ramps	5' Slide-In Ramps w/ Holders Available Options [-NRNP] No Ramps No Ramp Pockets
Stake Pockets	24" Stake Pocket Spacing Available Options [-2SPF] 2 Stake Pockets In Front of Trailer [-NSP1] No Stake Pockets
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Tie-Downs	(6) Flushmount D-rings Available Options [-RT01] 1 Pair Weld-On Ratchets [-DR01] 1 Extra Pair D-Rings [-NDR1] No D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings [-SRRR] 2" Rubrail
Breakaway System	Electric Breakaway System w/ Charger
Storage	Available Options [-GNC2] 2 GN Lockable Chain Holders [-GNCH] GN Lockable Chain Holder [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade [-TB05] Front Toolbox [-TB06] Locking Lid Over Tongue
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable
Tail	[S] Straight Deck w/ Rear Slide-in Ramps Available Options [5] 3.5' Dovetail w/2 Monster Ramps [B] 2' Dovetail w/ 5' Fold-up Ramps [C] Straight deck w/ 5' Fold-up Ramps [D] 2' Dovetail w/ 31 x 66 HD Fold-up Ramps [K] 2' Dovetail w/ Split Heavy Duty Gate [N] 2' Dovetail w/ 5' Rear Slide-in Ramps [L] Straight deck w/ 31 x 66 HD Fold-up Ramps
Other Options	Available Options [-FR01] Fork Rack [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-RATL] Ramp Gate Transition Lip

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.

TOOL TRAY IN TONGUE

Conveniently located inside the tongue, our resourceful tool tray accommodates chains, tools, and other essential equipment ensuring what you need is always within reach and ready for the job at hand.

DEMCO EZ LATCH GOOSENECK COUPLER

The first-of-its-kind, the Demco EZ Latch Gooseneck Coupler offers industry-leading reliability together with a custom housing for the ultimate in convenience. Are you ready? Then hitch up and go.

MULTIPLE RAMP OPTIONS AVAILABLE

Select from our standard 5' slide-in channel ramps or optional fold-up ramps to boost your trailer's adaptability with user-friendly solutions for loading vehicles and equipment.
