Car Haulers / B6

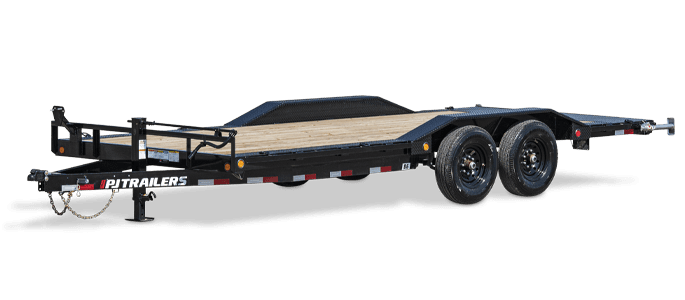

6" Channel Super-Wide (B6)

Offering more capacity and customizable to your liking, the B6 is the next step for those seeking a vehicle hauler with a little more oomph. Able to haul a wide range of load sizes and types (up to 16,000 lbs. G.V.W.R., depending on configuration), this trailer is built to make loading, unloading, and transporting vehicles and extra wide equipment a cinch with its drive-over fender design and rub rail with pipe spools and flushmount d-rings. So, what are you waiting for? Secure your cargo. Get on the road. Make your dreams come true.

View Inventory

Trailer Specifications

20 – 24'

Width

102"

Lengths

14,000 lbs

GVWR

10,580—12,650 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BS] (2) 7,000# Electric / Spring Available Options [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension
Tongue	6" Channel Tongue
Coupler	[J] BP 2-5/16" Adjustable (14,000 lb.) Available Options [J] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Spring Loaded Drop Leg Jack (12,000 lb.) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP
Frame	8" Channel Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3” Channel Crossmembers 16” oc
Floor	2" Treated Pine Lumber Deck Available Options [-BWFT] Blackwood Pro Full Deck (Tail Only) [-SF03] 11ga DP Steel Floor on Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	10" X 93" Drive-over 1/4" Diamond Plate Steel Fenders
Ramps	5' Slide-In Ramps w/ Holders
Stake Pockets	24" Stake Pocket Spacing Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets
Tie-Downs	(6) D-rings Available Options [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Stabilizers	Rear Stabilizer Stands
Storage	Available Options [-GNC2] 2 GN Lockable Chain Holders [-GNCH] GN Lockable Chain Holder [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade [-TB05] Front Toolbox [-TB06] Locking Lid Over Tongue
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools
Tail	[S] Straight Deck w/ Rear Slide-in Ramps Available Options [B] 2' Dovetail w/ 5' Fold-up Ramps [D] 2' Dovetail w/ 31 x 66 HD Fold-up Ramps [5] 3.5' Dovetail w/ 2 Monster Ramps [N] 2' Dovetail w/ 5' Rear Slide-in Ramps [L] Straight deck w/ 31 x 66 HD Fold-up Ramps
Other Options	Available Options [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-TRA1] 1/2 x 1/2 Square Traction Bars

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.

CARGO CONTROL STANDARD

Benefit from standard stake pockets for essential cargo securement, and then add optional D-rings to further keep cargo secured and ready for safe transportation.

EFFORTLESS LOADING SOLUTIONS

Simplifies the loading process for vehicles and small equipment, its drive-over fender design provides a versatile and easy-to-use solution that accommodates a wide range of load sizes and types.

MULTIPLE RAMP OPTIONS AVAILABLE

Select from our standard 5' slide-in channel ramps or optional fold-up ramps to boost your trailer's adaptability with user-friendly solutions for loading vehicles and equipment.
