Tilt Trailers / TS

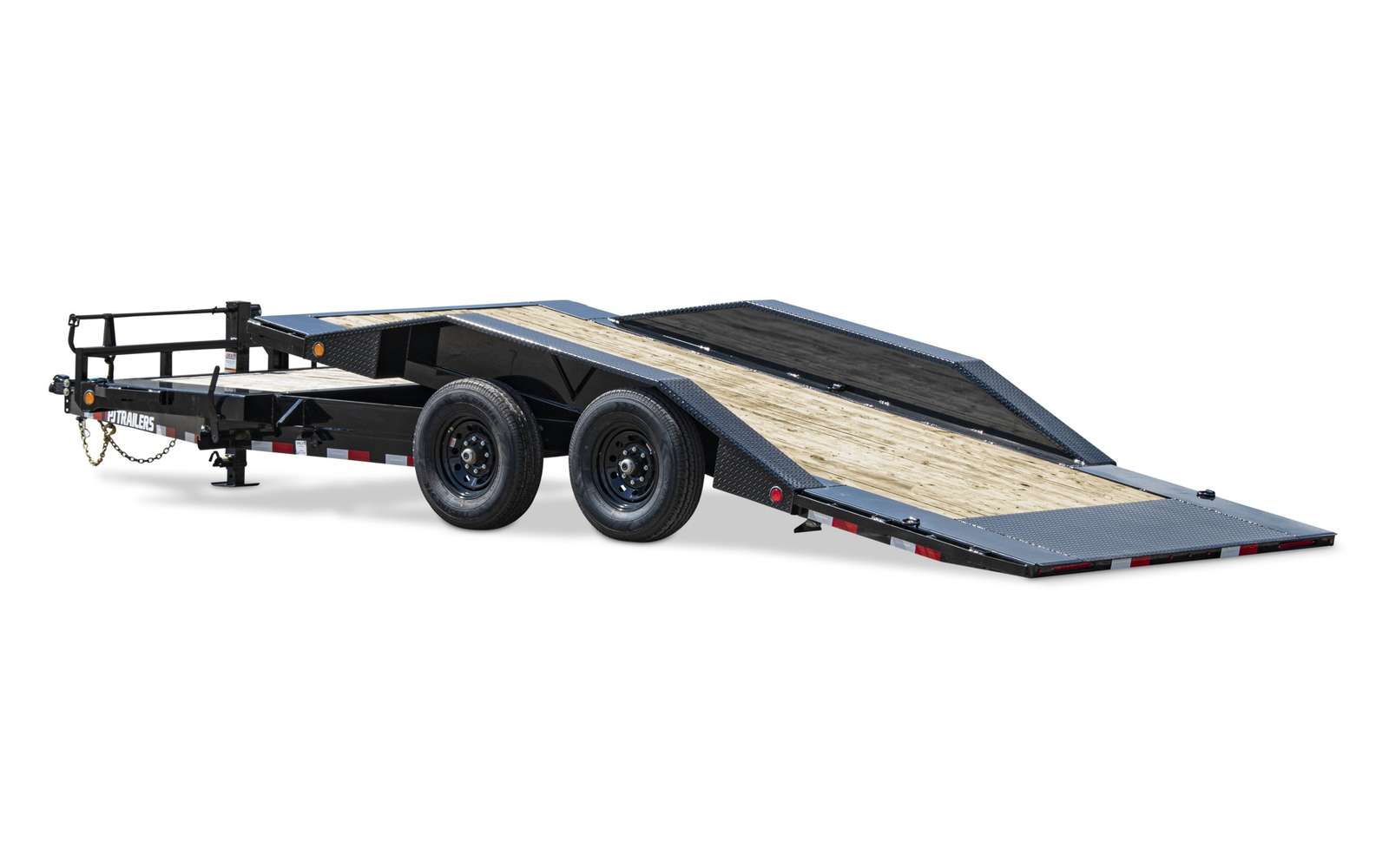

6" Channel Super-Wide Tilt (TS)

Then look no further than the 6" Channel Super-Wide Tilt Trailer (TS). Spacious and sturdy with an extra wide 102" tilt deck, the TS is constructed to safely and securely haul heavier cargo and equipment with its 7K torsion axles and forward self-adjusting brakes. And when dealing with large loads, it’s easy to nick and dent fenders, right? Not with the TS—outfitted to stand up to daily punishment with diamond plated fenders. Ready to find out what drives you?

View Inventory

Trailer Specifications

20 – 24'

Width

102"

Lengths

14,000 lbs

GVWR

10,080—11,100 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[72BT] (2) 7,000# Electric / Torsion Available Options [92BT] (2) 7,000# w/14 Ply LR-G Tires Electric / Torsion [Y2BT] (2) 7,000# w/215/75R17.5 LR-H Singles Electric / Torsion
Suspension	Torsion Suspension
Tongue	6" Channel Wrapped Tongue
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch Available Options [J] BP 2-5/16" Adjustable [P] 3" Pintle Eye - Channel-Mount (21,000 lb.) [Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox [R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox [S] GN 2-5/16" Square (25,000 lb.) w/ Toolbox [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack	Drop Leg Jack (10,000lb) Available Options [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA15] Upgrade to Dual 10k Jacks [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA18] Dual 2-Speed Jacks (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP
Frame	6" Channel Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Bump Rail	Front Bump Rail
Floor	2" Treated Pine Lumber Deck Available Options [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	10" X 132" Drive-over 1/4" Diamond Plate Steel Fenders Available Options [-FE02] 1/4" DP HD Weld on Fenders Triple Axle
Stake Pockets	Stake Pockets along both sides (Quantity depends on length) Available Options [-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available Options [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tilt Deck Dimensions	102" x 16' Wide Tiltable Deck (all lengths)
Rubrail	2" Rubrail
Tie-Downs	(6) Flushmount D-rings Available Options [-RT01] 1 Pair Weld-On Ratchets [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Hydraulics	Hydraulic - Cushioned Gravity tilt Available Options [-PUGD] Power Up/Down & Gravity Down Upgrade [-PUPD] Power Up/Down Hydraulics
Storage	Available Options [-GNC2] 2 GN Lockable Chain Holders [-GNCH] GN Lockable Chain Holder [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade [-TB05] Front Toolbox [-TB06] Locking Lid Over Tongue
Cargo Winch	Available Options [-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools
Tilt Deck Angle	11°
Tail	[T] 16' Tilt Deck
Lift Cylinder	3" x 16" Cylinder
Other Options	Available Options [-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-TRA1] 1/2 x 1/2 Square Traction Bars

Model Benefits

FORWARD SELF-ADJUSTING BRAKES

Simplify brake maintenance with our forward self-adjusting brakes. Engineered to self-adjust for optimal braking performance, this innovative system reduces downtime and ensures consistent stopping power.

HYDRAULIC CUSHIONED GRAVITY TILT

Using a hydraulic cylinder and proportioning valve to control the rate of tilt bed movement, our hydraulic powered gravity tilt provides an extra level of safety and security when loading and unloading cargo.

CARGO CONTROL STANDARD

Benefit from standard stake pockets for essential cargo securement, and then add optional D-rings to further keep cargo secured and ready for safe transportation.
