Dump Trailers / D3

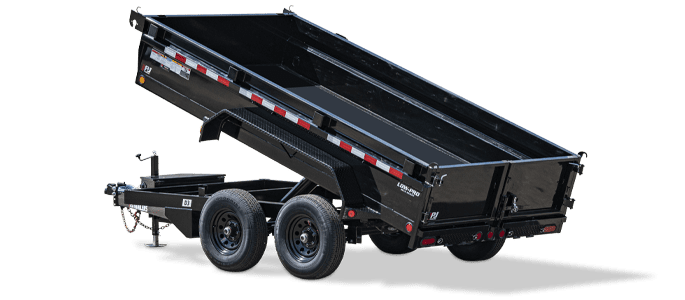

72" Tandem Axle Dump (D3)

Equipped with a straight ram hydraulic lifting system, the D3 helps you haul and dump mulch, dirt, and gravel with ease. Whatever you encounter, the D3 has the strength and durability you’ll need—on the job, at home, or even the farm. Your back will thank you.

View Inventory

Trailer Specifications

10 – 12'

Width

72"

Lengths

9,990 lbs

GVWR

6,970—7,240 lbs

Load Capacity

Features & Options

Standard Feature	Click + for Options
Axles	[52BS] (2) 5,200# Electric / Spring Available Options [62BS] (2) 5,200# Electric / Spring With Upgrade to 235/80 R16 on 52k Axles
Suspension	6-Leaf Slipper Spring Suspension
Tongue	5" Channel Tongue
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch Available Options [A] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (21,000 lb.)
Jack	Top Wind Drop Leg Jack (8,000 lb.) Available Options [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA09] Upgrade to Single 10k Jack [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	5" Channel Frame Available Options [-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers
Floor	10ga. Steel Bed
Fenders	1/8" Treadplate Steel Fenders
Ramps	Available Options [-RA01] Ramp
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)
Wiring	All-Weather Wiring Harness (7-way RV)
Tires	ST225/75R15 Radial Tires 8 ply (2,540 lbs.)
Paint Color	[K] Primer + Black Powder Coat Available Options View Color Options [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [B] Primer + Jet Blue Coat (NEW!) (Texas Only) [J] Primer + Industrial Green Coat (NEW!) (Texas Only) [Y] Primer + Industrial Yellow Coat (NEW!) (Texas Only) [G] Primer + Slime Green Coat (NEW!) (Texas Only)
Tie-Downs	Available Options [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger
Battery	12V Deep Cycle Battery Available Options 12V Deep Cycle Battery
Charging System	110V Integrated Trickle Charger
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down
Sides	20" 10ga. UniWall Steel Sides Available Options [-SE18] 18" Side Extensions (Solid) [-SW04] 4ft Tall Sides
Storage	Available Options [-TB03] Full Size Divided Toolbox Upgrade
Tarp	Mounting Brackets for Roll-up Tarp Available Options [-TK01] Tarp Kit
Cargo Winch	Available Options [-WN04] Gooseneck Winch Plate
Tail	[S] Split Gate Available Options [T] Split / Spreader Gate
Dump Gate	Barn Door Gate
Lift Cylinder	5" x 30" Single Push Cylinder
Other Options	Available Options [-GV09] 9,900 G.V.W.R. [-RS01] Rear Support Stands

Model Benefits

SELF-CONTAINED HYDRAULIC UNIT & FRONT-LOCKING TOOLBOX

Providing reliable power for your dump trailer, the self-contained hydraulic unit keeps you hauling in rugged conditions and tough situations. The front-locking toolbox offers secure storage for your equipment and ensures what you need is always within reach and ready for the job at hand.

2-WAY GATE SYSTEM (OPTIONAL)

Enhance your trailer's versatility with our optional 2-Way Gate System combining the functionality of a barn door and spreader. This innovative gate system allows for maximum load dumping flexibility.

DEMCO EZ LATCH COUPLER

Featuring a simple and secure design, the Demco EZ Latch Coupler offers industry-leading reliability together with a custom housing for the ultimate in convenience. Are you ready? Then hitch up and go.

UNIWALL STEEL TECHNOLOGY

Using form-rolled steel to add structural integrity, our UniWall Steel Technology reduces corrosion-vulnerable seams while lowering the trailer's weight and increasing capacity. An innovative technology that delivers an overall better experience for customers.
